Status update on SQLbusRT

I'll be on holidays from the 25th of August till the 5th of September. Therefore, I thought it would be a good idea to give an update on the current status of SQLbusRT.

Coding has almost finished. With almost finished, I mean it is almost ready for the first test runs. It is still a very simple implementation. It will give me some baseline figures when I execute my first performance tests, but it does not have all the planned functionality yet.

I'm not publishing the code yet. I want to have the code reviewed by some collegues first, and perhaps it's better to wait for the results of the first test runs to see whether the taken approach is a good one.

I've finished setting up a network of computers to run my tests on. All computers run linux, with the possibility of choosing a patched or an unpatched kernel on boot. The patched kernel offers preemption. This will be used to give real time priority to the incoming data from the network adapters. I'll give more detailed information on this after my holidays.

The 6th of September I'll be running those first test runs. As soon as some useful data has been extracted, it'll be posted here.

Handling SQL requests in SQLbusRT

While implementing the first test version of SQLbusRT, I faced a problem on how to communicate SQL requests and query results using ORTE as a medium.

Usually when doing an SQL request, a connection is set up between a client and an SQL server. The client sends its SQL request over this connection, and as an answer it receives the query results over the same channel. Unfortunately, in the bus architecture I have in mind things aren't that simple...

Remind the fact that SQLbusRT is built on top of a publish/subscribe model. Ideally speaking clients should be subscribers, and the database server should be a publisher. However, this introduces a problem for both instances:

• How does the publisher know what to publish?
• What should the subscriber subscribe to?

I already thought of a solution before I started implementing. This solution was even visible in my diagrams (see my previous posts) . The idea was to make a client act as a publisher to publish its request.

This idea however was not complete. While struggling with the question on how to actually implement this using publish/subscribe, I came up with the following:

• The request handler has a subscriptions for SQL requests
• The client publishes an SQL request
• The client creates a subscription for information from the request handler

• The request handler sends information on which data source to subscribe to
• The request handler sets up a publication for the new request

• The client subscribes to the correct data source

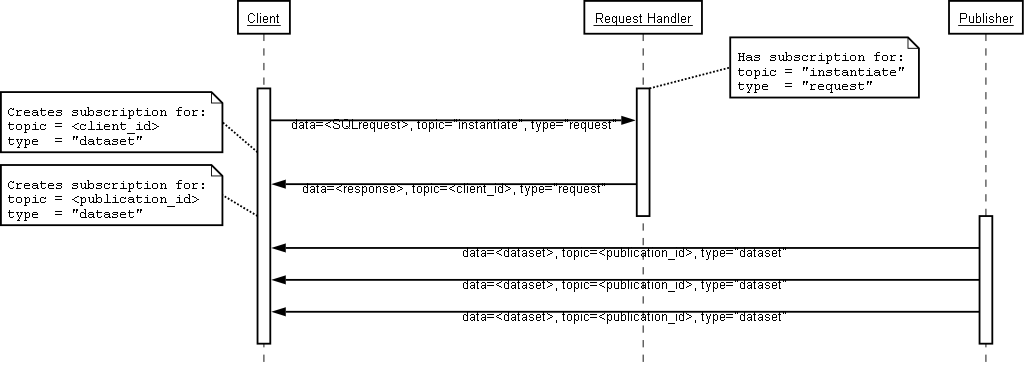

The following activity diagram shows how this communication is set up. It shows what data is present in the different messages. (Actual data, 'topic' and 'request', as required in RTPS.)
It also shows at what time subscriptions are being created in handlers and clients.

(Click to enlarge)

Note: The SQLrequest as you see it in the diagram is an object, containing the clientID, requestID and the actual SQL query. The response is also an object, containing the publicationID and requestID.

Working this way has a great benefit when multiple clients are making the same periodic or triggered request. The data only has to be fetched from the database once and will be distributed automatically, by letting the requesting clients subscribe to the same publication.
